Indoor Interactive LED Floor Screens with 900-3000NITS Brightness and 200W/Cabinet Power

  • 1
  • 2
  • 3

Brand Name : AlisenLED/OEM/ODM

Model Number : P1.52/P1.83/P1.95/P2.5/P2.6

Certification : CE/CSA

Place of Origin : China

MOQ : 1uite module or 1 unit cabinet

Payment Terms : T/T, L/C, D/P, D/A, Western Union

Supply Ability : 5000SQM/Month

Delivery Time : 7-30 Working days

Packaging Details : flightcase or Wooden case

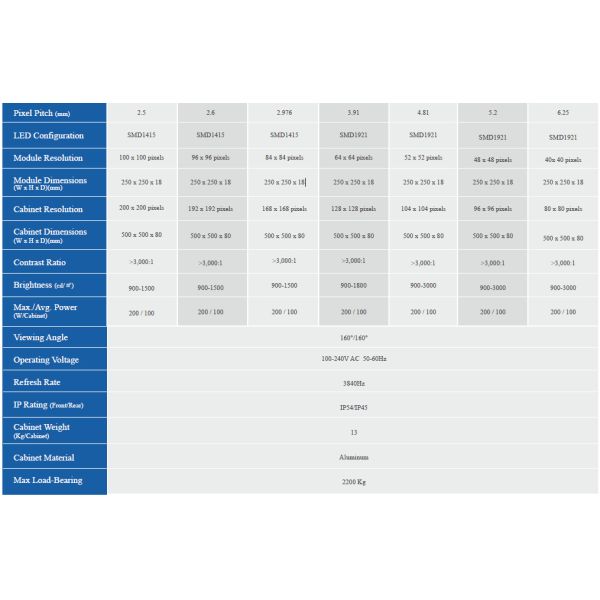

Brightness(cd600/㎡) : 900-3000NITS

Contrast Ratio : >3000:1

Display Colors : 12-16BIT

Pixel Pitch : 2.5/2.6/2.976/3.91/4.81/5.2/6.25

Refresh Rate : 3840HZ

Viewing Angle : H160-V160

LED Configuration : SMD1415

Module Dimensions(W*H*D)(mm) : 250x250x19.5

Module Resolution : 164x164 / 136x136/ 128x128/ 100x100 /96x96/80x80 pixels

Cabinet Resolution : 200x200/192x192/168x168/128x128/104x104/96x96/ pixels

Cabinet Dimensions : 500x500x80

Max./Avg.Power(W/Cabinet) : 200/100

Operting Voltage : 100-240V AC 50-60Hz

Cabinet Weight(Kg/Cabinet) : 13

Cabinet Material : Aluminum

Max Load-Bearing : 2200Kg

Class of protection : IP54/IP45

Contact Now

MAIN FEATURES

Ultra-thin design, can be used in the height of the limited ground laying use;
High load bearing: Solid aluminum structure design, light weight, stronger load bearing, up to 2.2T/m²
High safety: waterproof IP54/IP45, not afraid of harsh environment use
Gold plating process: All connectors, power supplies, wiring, etc. all adopt gold plating process
High heat dissipation: the box adopts 10mm thick aluminum plate, which can dissipate heat quickly and effectively extend the service life of the product
Professional technical mask: PC material, light diffusion process, arbitrary Angle viewing, no color difference, the whole screen viewing is better

Indoor Interactive LED Floor Screens with 900-3000NITS Brightness and 200W/Cabinet Power

Indoor Interactive LED Floor Screens with 900-3000NITS Brightness and 200W/Cabinet Power

Project case

Indoor Interactive LED Floor Screens with 900-3000NITS Brightness and 200W/Cabinet Power

Indoor Interactive LED Floor Screens with 900-3000NITS Brightness and 200W/Cabinet Power
